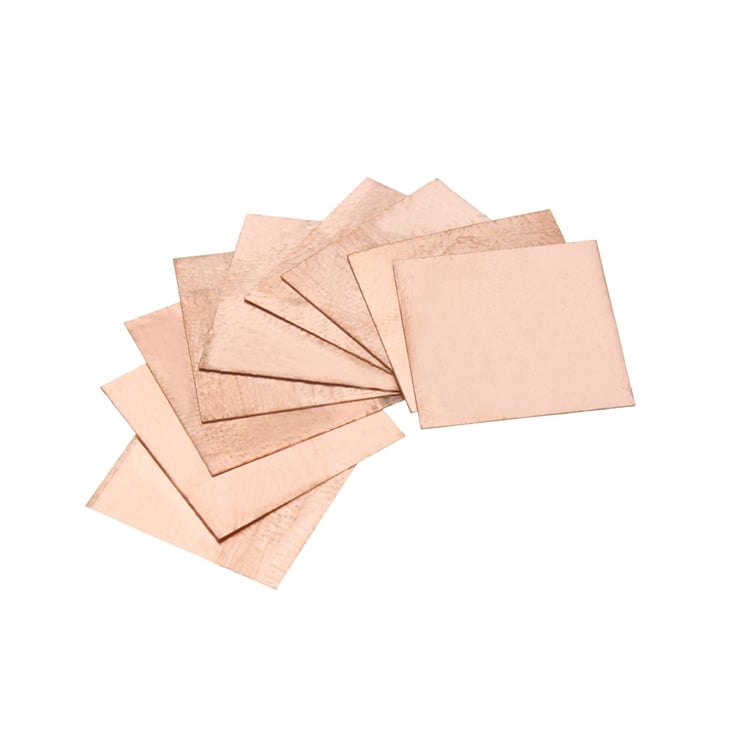

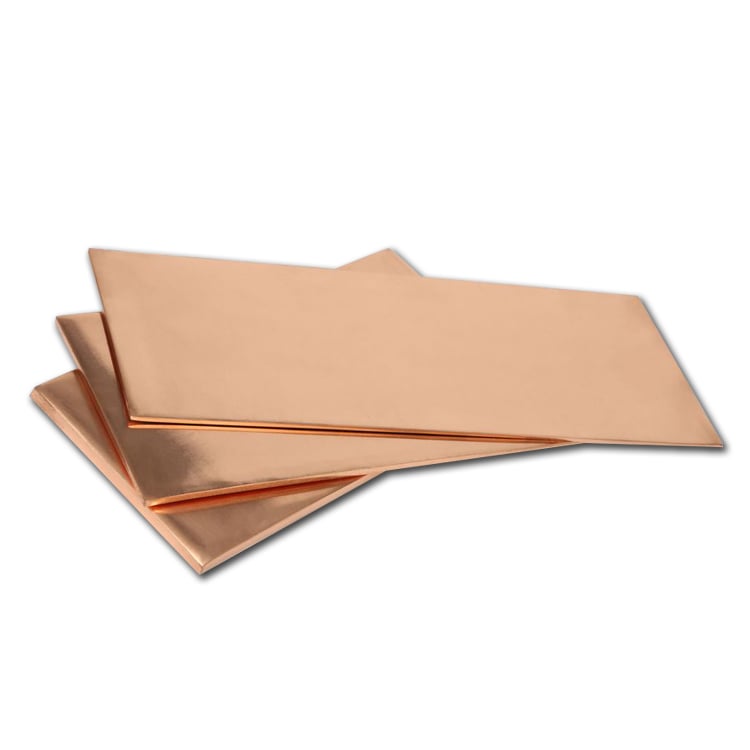

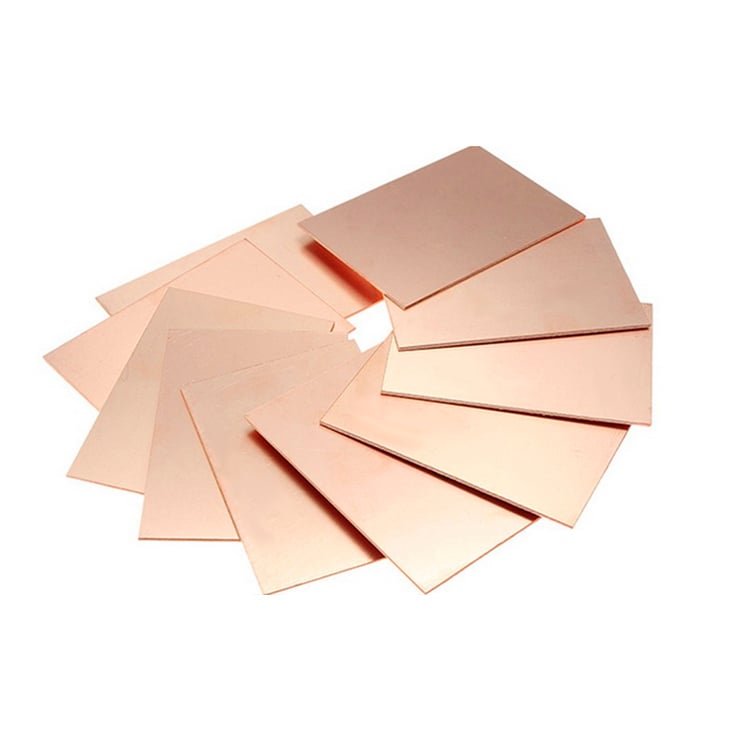

C19900 Titanium copper introduction
C19900 is a typical time hardening high-strength and high elastic copper alloy with Ti and other trace elements added to copper as the matrix. Its mechanical and physical properties are comparable to those of beryllium copper alloy. It can be used for manufacturing application connectors, connecting components, electrical springs, internal spring plates of high-voltage terminals, etc
| Grade | Chemical composition（%） | Thickness (mm) |
|||||
| ASTM | Cu | Ti | Fe | Y+La | Others | ||
| C19900 | Balance | 2.9-3.4 | 0.17-0.23 | ≤0.12 | ≤1.0 | 0.05-1.0 | |
| Physical properties | |||||||
| Density (g/cm³) |
Modulus of elasticity (GPa) |
Thermal expansion coefficient (×10-6/K) |
Electrical conductivity (%IACS) |
Thermal conductivity W(m·K) |
|||
| 8.7 | 125 | - | 10 | 67 | |||
| Mechanical properties | Bend properties | ||||||
| Temper | Vickers Hardness | Tension test | 90°R/T(Thick＜0.12mm) | ||||
| Tensile Strength （MPa） |
Yield Strength(MPa） | Elongation % （A50） |
Good way | Bad way | |||
| EH | 280-320 | 850-1020 | 780-950 | ≥10 | 0 | 1 | |
| SH | 310-330 | 970-1100 | 900-1000 | ≥6 | 0 | 1.5 | |
| ESH | ≥340 | 1010-1200 | 950-1050 | ≥3 | 1 | 2 | |
FAQ
Q: How long is your delivery time?
A: Generally it is within 15 days if the goods are in stock. or it is less than 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What ls your terms of payment ?
A.30% T/T in advance ,balance before shipment. And the price depends on the material and the quantity
If you have another question, please feel free to contact us.
